How to Read a Monastic Ground Plan on Site

A ruined abbey can look at first like a field of old walls that happen to be standing. Twenty minutes later, with the pattern in your head, the same site reads like a building: you know where the monks sang, where they ate, where business was decided, and which door the abbot used when he wanted to avoid company. Monastic ground plans across western Europe follow a remarkably stable arrangement, and once you have learned it you can walk into almost any ruin and find your bearings within a few paces. The trick is not to memorise a specific site but to read the order in which the buildings unfold.

Start at the church, and start at its east end

The church is nearly always the biggest thing on the site and usually has the tallest surviving walls. Find the east end first: the squared-off or rounded termination where the high altar stood. The community faced east to pray, so the whole plan is oriented from this point. From there, walk west — the choir where the monks sat, the crossing where the transepts run north and south, the nave where processions formed and lay people were sometimes admitted, and finally the west front with its main door.

Where the church survives only as footings, look for the pier bases of the nave arcade, a row of square stones set at regular intervals, and for a change of floor surface marking the edge of an aisle. Cross-shaped shadows on the ground are a good sign you are standing in the church and not in the cloister.

The cloister is the hinge of the plan

Almost everything else hangs off the cloister: a square open garden, the garth, ringed by four covered alleys. Its north alley is usually formed by the south wall of the nave, which is why church and cloister feel joined at the hip. If you can find the garth, you can name the ranges around it.

• North range: the church itself.
• East range: chapter house, parlour, slype and, above, the dormitory.
• South range: refectory, warming house, kitchen.
• West range: cellarer's stores, guest accommodation, lay brothers' quarters.

At a fragmentary site, look for a flat square of lawn with a line of low wall or column bases around it, and sometimes a central well or a stone laver. One caveat: a small number of sites place the cloister north of the church. If the pattern feels reversed, check the site plan rather than doubting your reading.

The east range, where the community ran itself

Stand in the east alley and look for the grandest doorway on the site, often vaulted and flanked by pairs of columns. That is the chapter house. Inside, a stone bench runs around the walls; monks sat in order of seniority while a chapter of the rule was read and daily business settled. Next door is usually the parlour, one of the few places speech was permitted, and the slype, a narrow passage through the range that once linked the cloister to the infirmary or the outside world. A stair in the same range led up to the dormitory, which occupied the whole first floor.

Reading the east range is mostly about doorways and stairs. A wide opening off the alley, a bench, a worn stair turret and a long wall above — those four things together are unmistakable once you have seen them.

The south range: refectory, fire and food

The refectory sits on the south alley, running parallel to the church, usually raised a step or two above the cloister and lit by tall windows. Inside, look for the reader's pulpit or lectern base at one end and the serving hatch from the kitchen at the other. Outside the door, monks washed their hands at a stone laver before meals, so the trough or its drain often survives.

The warming house was the one room apart from the kitchen where a fire burned, and its hearth and chimney base are frequently legible in the footings. Kitchens sit further out from the cloister, sometimes beyond the refectory, with ovens and drains built into the floor. The west range, meanwhile, often survives as long, narrow undercrofts and storerooms; at houses of the larger orders it held the lay brothers, whose separate long room you can sometimes trace by its own door and stair.

Read the doors and the wear, not just the walls

Stretches of blank masonry tell you very little. The detail tells the story:

• Broken arches and jamb stones: even when the door itself has gone, the springing of an arch and the dressed stones of a jamb show where people went in and out.
• Blocked openings: a patch of different stone, a shadow line or a straight joint in the masonry marks a doorway or window filled in later.
• Wear: steps dished in the middle, thresholds polished smooth, jambs rubbed into curves — these mark the busiest routes in the building.
• Floor levels: a sudden change of level usually means a raised room such as a refectory, or the first step of a dormitory stair.
• Joist holes and corbels: rows of square sockets or small stone brackets once carried a timber upper floor that has long since vanished.
• Glazing grooves and small squares: a groove cut into stone held a window frame; a small square recess is often a cupboard, a drain or a garderobe.

Before you go: light, safety and a plan

A little preparation makes a ruin far more legible. Look up the site plan before you travel — an aerial view online often shows the layout more clearly than any drawing — and take the visitor leaflet on arrival, even if you ignore the numbered tour.

1. Go at midday in winter or early morning in summer. Low, raking light reveals wall lines and changes in masonry that flat overhead light hides.
2. Carry a compass or use your phone. Knowing which way is east resolves most confusion within seconds.
3. Walk the perimeter before the interior, so you hold the shape of the whole site before getting lost in detail.
4. Keep off the walls and out of fenced areas. Ruins are unstable, floors uneven, and wells and drains frequently unmarked. Check opening times and access before setting out; some monastic remains stand on private land and need permission to visit.

If the plan still resists, sit down in the cloister garth and look again. These buildings were laid out for people who walked them every day, and their logic tends to surface once you stop moving.

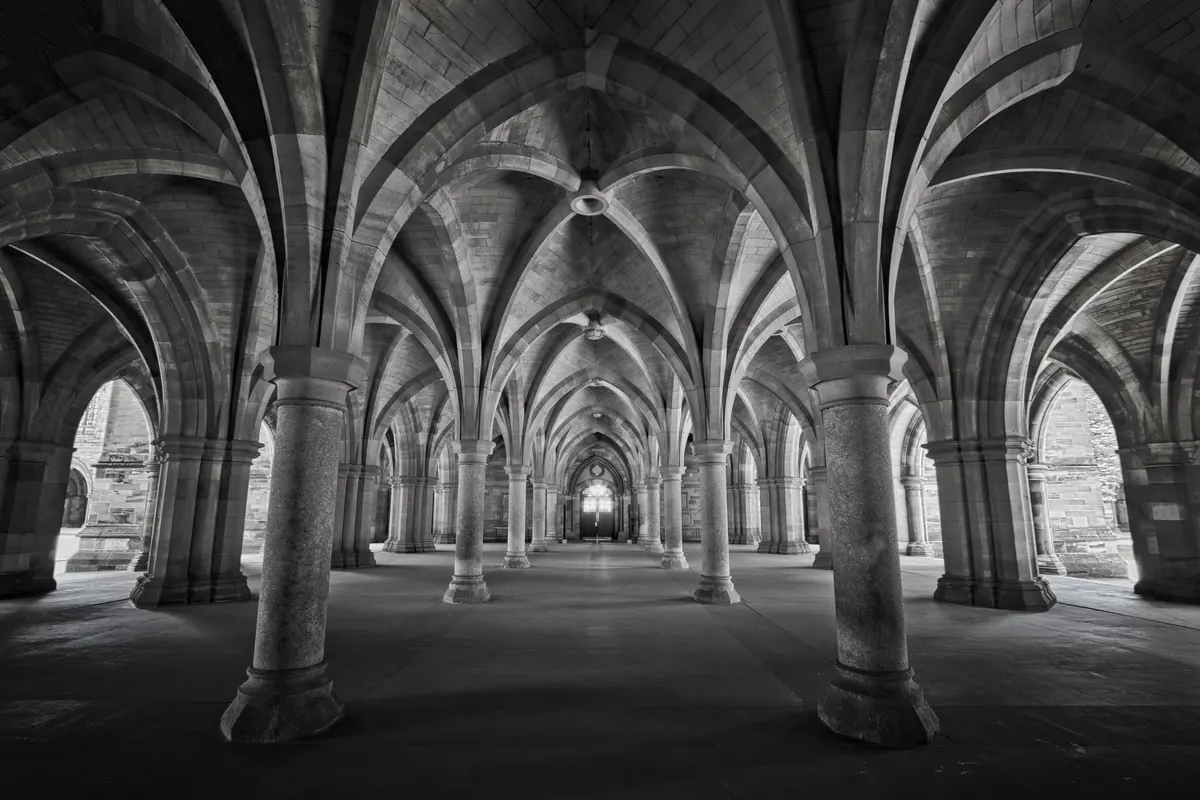

Photo: Michael D Beckwith / Pexels
